Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: CCDCAM
  • Model Number: NKIT8108W
  • Special Feature 1: Built-in Wireless AP, install without WIFI router
  • Special Feature 2: Private protocol install without configuring
  • 2.4Ghz Wireless AP: support
  • WIFI Barrier-free transport: 100 meters
  • wall transfers: 30 meters
  • camera resolution: 720p wifi ip camera
  • IR Distance: 30m
  • Waterproof: ip66
  • HDD: Support 1 HDD, Max 4TB
  • Certificate: CE, FCC, RoHS

Packaging & Delivery

Packaging Details: 1set/box



  Key Feature

>720P Wifi Waterproof IP Camera (3.6mm lens, 30m ir distance)

>8CH Wifi NVR (8x720P Playback, support 1 pcs HDD Max 4TB)

>Built-in Wireless AP, install without WIFI router

>Private protocol install without configuring



NKIT8108W
WIFI NVR
Support embedded Linux OS
Built-in Wireless AP,install without WIFI router
2.4G All wireless Transfer video avoid from wiring problems
Support HDMI,VGA Sync 1080P video output
Support HD preview, all channels support Main stream
Support Zoom function of preview
Support event,playback,backup recording ,support picture playback and search
Support One-key setup and recording
System
Main processorHigh performance embedded microprocessor
Operating systemEmbedded LINUX OS
Video spec.
Video compression formatH.264
Display Image Resolution720P 1~30FPS
Playback Image Resolution720P 1~30FPS
Motion Detectioncan setup 396(22×18)pcs motion detection area
each channeland multi-level sensitivity(0-100 levels adjustable)
Recording Mode
Recording ModeManual Recording,Time Recording,Motion Recording
Recording storageHDD,Network
Frame rate1~30 fps
PlaybackMax support 4ch 720P synchronously playback
Backup ModeSupport HDD,USB Flash Disk store & backup
Video
Video Input8CH 720P IPC
Video output1ch HDMI, 1ch VGA
Other
Network2.4Ghz Wireless AP,10/100Mbps Ethernet port;
WIFI Barrier-free transport 100 Meters, wall transfers 30 Meters
USB2 USB 2.0 ports
HDDsupport 1 SATA HDD (MAX 4TB)
PowerDC12V 3A
Power consumption16W-18W(not include HDD)
8*IP WIFI cameras
Camera Type720P IP Camera
CameraImage Sensor1/4 inch 1 Megapixel  CMOS sensor
DSPHI3518 DSP 32 dual-core , pure hardware compression
IR-LED36 PCS IR LEDS
Illuminate Distance30m IR distance
Day/NightIR-CUT filter
Min.IlluminationColor 0.6Lux/F1.2,B/W 0.08 Lux/F1.2
Electronic Shutter1/50(1/60)s-1/100,000s
Lens3.6/6mm Fixed Lens
Lens MountCS Mount
Digital Zoom10X Digital Zoom
VideoCompression standardH.264
Compression technologyDual-stream compression technology
Video framesReal-time PAL 25fps,NTSC 30fps   1-30fpsAdjustable
output bit rate32Kbps~5000Kbps Adjustable
ImageResolutionMain Stream:1280×720(video resolution);
Sub Stream:640×360, 480×270,320×180;
NetworkprotocolDHCP,TCP/IP,HTTP,UDP,DNS
AlarmSupport Motion Detection, Linkage Alarm,
Privacy MaskSupport
Vedio portVideo output1CH Video output,RJ45/WIFI,PAL/NTSC Optional
Network interfaceRJ4510M/100M Ethernet port /WIFI 2.4GHz
OtherPower supplyDC 12V
Waterproof CriterionIP66
KITS
Work environment-10℃~60℃90%RH
Package Size
Net Weight

















Install instruction











One-key Setting

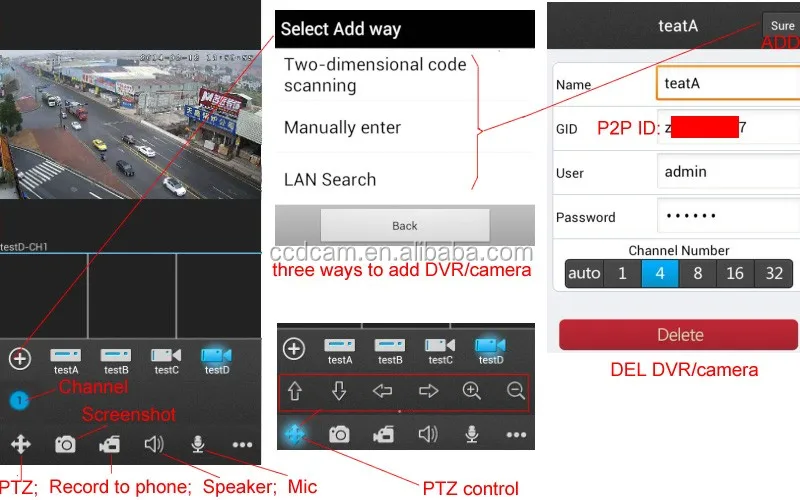

Phone Client





P2P




Application









Packing List







9CH Wireless AP NVR1pcs
CD1pcs
Mouse1pcs
Power for DVR

1pcs

1.0MP WIFI camera8pcs
Power for cameras8pcs
